The steel clean door is a key infrastructure component for maintaining the integrity of cleanroom environments, specifically designed for ISO Class 5-8 clean areas. Its core value lies in achieving reliable zonal isolation while meeting the special requirements of cleanrooms.
I. Excellent Sealing Performance
Uses EPDM rubber sealing system to ensure airtightness meets EN 16341 standard
Door frame and leaf adopt labyrinth sealing structure, effectively preventing particle penetration
Bottom automatic lifting seal strip achieves dynamic sealing effect
II. Clean Design Philosophy
Smooth surface without dead angles, complies with cGMP standards
Rounded transition design avoids dust accumulation
Embedded hardware ensures easy cleaning
III. Material and Structure Configuration
| Component | Material Specification | Performance Indicators |
| Door Leaf | Galvanized Steel Sheet/304/316 Stainless Steel Sheet, 1.0-1.2mm thickness | Surface roughness Ra≤0.8μm, Corrosion resistance ≥500h salt spray test |
| Filling Material | Aluminum Honeycomb/Rock Wool Core | Sound insulation ≥28dB, Fire rating Class A |
| Sealing System | Food-grade Silicone Seal Strip | Temperature resistance -40℃ to +120℃, Service life ≥100,000 cycles |
| Hardware | Stainless Steel Hidden Hinges, Antibacterial Lock System | Opening life ≥500,000 cycles, Surface antibacterial treatment |
| Name | Width | Height | Applicableplate thickness | Window | Colour |
| Single Door | 900mm | 2100mm | 50mm-250mm | 400mm*600mm | We leveren kleurkaarten die klanten kunnen kiezen |

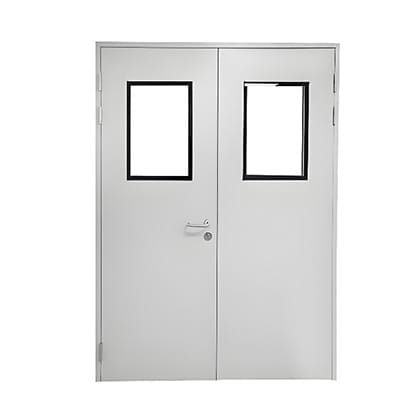

| Double Door | 1200mm（900mm+300mm） | ||||
| 1500mm（750mm+750mm） |
IV. Detailed Technical Parameters
Basic Performance Indicators:
Airtightness: Air leakage ≤5m³/h·m² at 50Pa pressure difference
Sound Insulation: 28-32dB
Fire Rating: Class A non-combustible material
Wind Pressure Resistance: ≥1000Pa
V. Optional Configuration Solutions
Functional Configurations:
Viewing Window (Tempered Glass/Acrylic Resin)
Interlock Control System
Emergency Escape Device
Access Control System Integration
Automatic Door Closer
Special Requirement Configurations:
Radiation Shielding Layer
Anti-static Coating
Airtight Pass-through Integration
Sterilization Channel Interface
The steel clean door, with its excellent sealing performance, durable material characteristics, and comprehensive quality control system, provides reliable environmental isolation protection for cleanrooms. Customized solutions can be provided to ensure the product perfectly meets your clean environment requirements.
| Name | Width | Height | Applicableplate thickness | Window | Colour |
| Volledig stalen enkele deur | 900mm | 2100mm | 50mm-250mm | 400mm*600mm | We leveren kleurkaarten die klanten kunnen kiezen |
| Enkelvoudig te openen stalen deur | 900mm | ||||
| Volledig stalen deur | 900mm+300mm | ||||
| Volledig stalen deur met dubbele deur | 900mm+750mm | ||||
| Dubbele stalen deur die in één richting kan ontsnappen | 900mm+750m |
