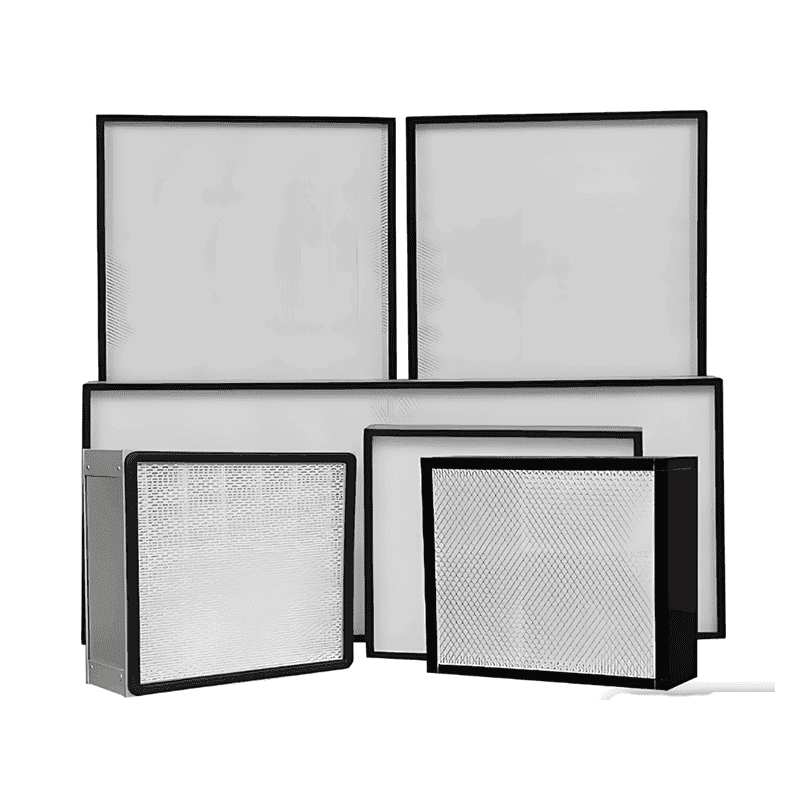

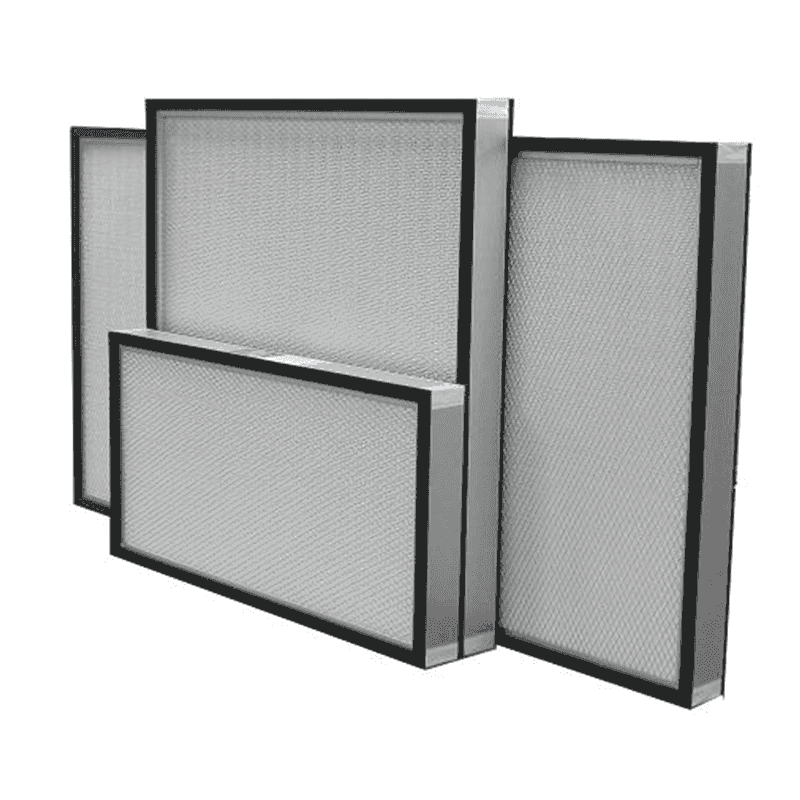

Mini-pleat Ultra Low Penetration Air (ULPA) Filter
This product is designed for environments requiring ultra-high cleanliness, such as semiconductor manufacturing plants, atomic energy research centers, cleanrooms, laminar flow equipment, and clean benches.
Features
1. High Efficiency: Primarily captures particles larger than 0.12µm.
2. Low Resistance
3. Thin Profile & Light Weight
4. Easy Installation
5. Each Unit Individually Scan-Tested for Leaks
Specifications & Requirements
Compliant Standards: EN 1822 Class U15 / U16 / U17
Compliant Standards: IES-RP-CC-001.3 Type F
Operating Conditions:
Maximum Temperature: Up to 80°C
Maximum Humidity: Up to 100% RH (non-condensing)
Depth/Thickness: 50mm, 70mm, 90mm
| Product Specifications | |||||||
| Dimension (H x W x D mm) | Rated Airflow (m³/h) | Initial Resistance (Pa) | Filter Efficiency (%) | Frame Material | Filter Media | Separator Material | Sealant |
| 610 × 320 × 220 | 470 | < 200 |
> 99.9995 |
Aluminum Alloy |
Fiberglass Filter Paper |
Hot Melt Adhesive |
Polyurethane Rubber |
| 915 × 450 × 220 | 700 | ||||||
| 610 × 610 × 150 | 600 | ||||||
| 915 × 820 × 150 | 900 | ||||||
| 610 × 630 × 220 | 800 | ||||||
| 915 × 968 × 220 | 1200 | ||||||
| 1220 × 945 × 220 | 1500 | ||||||
| Note: Special sizes are available upon request. | |||||||
